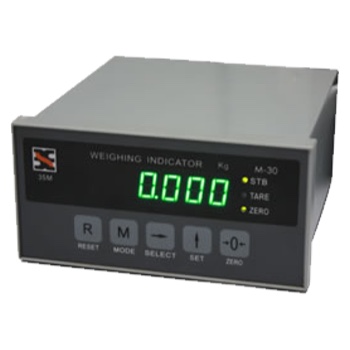

3sm-M30
- 1/30,000 display resolution
- Green LED display ( height 12.5mm )
- High-speed A/D conversion with up to 30 times/second
- Auto zero tracking and full range tare
- Digital filter setting for better performance
- Full digital calibration: 2 points general calibration
- Connection to computer with RS 232c serial port output
Technical Specification
| Operation Temperature: | 0 ~ 40 celsius degree |
| Power Source: | AC/100V ~240V , 50/60 Hz |
| Power Consumption: | Approx. 10VA |
| Operation Humidity: | <85% RH |
| Dimension: | 165 mm x 160 mm x 80 mm |
Panel Mount Digital Indicator ( Product for 3sm Singapore )
Use for Hopper Scale, Tanker Scale, Platform Scale & Truck Scale
General Specifications
| Excitation: | 5Vdc |
| Sensitivity: | 0.15V/d |
| Linearity: | 0.01% FS |
| Zero Range: | 0 ~ 10mv |
| Signal Range: | 0 ~ 30mv |
Optional
I/O output card for 3 set point
| Dimensions | 16.5 × 16 × 8 cm |
|---|
