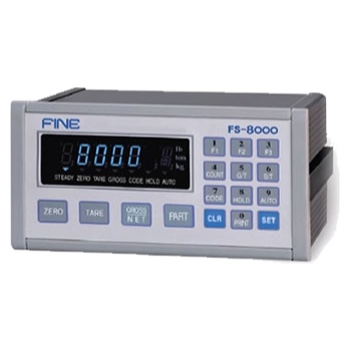

FINE-FS8000
Technical Specification:
| Conversion | Analog Input & A/D Conversion |
| Input Sensitivity | 0.2 mv/d |
| Zero adjustment Range | -4 mV/V min 42m V/V max |
| Load cell excitation | DC 10V (15V/AC) |
| Max Input Voltage | Up to 32mV |
| Temperature Coefficient | -10 degree -40 degree |
| A/D Converter | 130,000 Count |
| Non-Linearity | 0.005% H F.S |
Heavy-duty, Reliable and high-speed reading digital Indicator (Made in Korea)
General Specification:
| Power | AC110 / 220V (+/-10%) , 50 / 60Hz, 10VA |
| Product Weight | Net 2.3kg, Box 3.3kg |
| Operating Temperature | -10 degree / +40 degree |
| Operating Humidity | 85% RH Max (Non-Condensing) |
| Physical Dimensions | 193.6 x 98 x 166 (mm) |
Digital Section:
| Max.Display | 20,000 counts |
| Min.Division | x1, x2, x5, x10, x20, x50 |
| Display Unit | 7-Segment, 7 digit Highly bright fluorescent tube |
Options:
| OP-01 | Standard |
| OP-02 | Serial I/F : Current Loop |
| OP-03 | Parallel I/F : BCD-Out |
| OP-04 | Serial I/F : RS422, RS485 |
| OP-05 | Analog Output : (0-10V / 10V-0V) |
| OP-06 | Analog Output : (4-20mA / 20-4mA) |
| OP-07 | Print I/F : Centronics Parallel |
