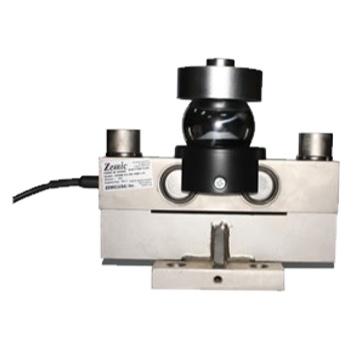

Zemic-HM9B
- High side load tolerance
- Easy Installation
- Electroless nickel plated alloy steel
Technical Specification
| Model: | H9B-C3-10t | H9B-C3-20t | H9B-C3-25t | H9B-C3-30t | H9B-C3-40t |
| Capacity: | 10 ton | 20 ton | 25 ton | 30 ton | 40 ton |
High Precision and heavy-duty Load Cell. (Zemic USA)
Suitable for Vehicle Scales, Track Scales, and other electronic weighing devices.
General Specification:
| Accuracy Class: | OIML R60 C3 | Temperature Effect on Span: | 10 deg |
| Rated Output (mv/v): | 2.0+/- 0.02 | Temperature Effect on Zero: | 10 deg |
| Combined Error ( %FS ): | 0.02 | Compensated Temperature: | -10 ~ +40 |
| Non-linearity ( %FS ): | 0.017 | Operating Temperature: | -35 ~ +65 |
| Non-repeatability ( %FS ): | 0.01 | Recommended Excitation (v): | 5 ~ 12 |
| Creep (30min): | 0.01 | Excitation (v): | 18 (DC) |
| Input Resistance: | 700+/- 7 ohms | Safe Overload (%FS): | 150 |
| Output Resistance: | 700+/- 7 ohms | Ultimate Overload (%FS): | 300 |
| Insulation Resistance: | 5000 (M ohms) | Protection Class: | IP-67 |
| Zero Balance (%FS): | 1.5 | Cable Length (M): | 4 |
| Model | H9B-C3-10t, H9B-C3-20t, H9B-C3-25t, H9B-C3-30t, H9B-C3-40t |
|---|
